[P1L] Label Locking Slide

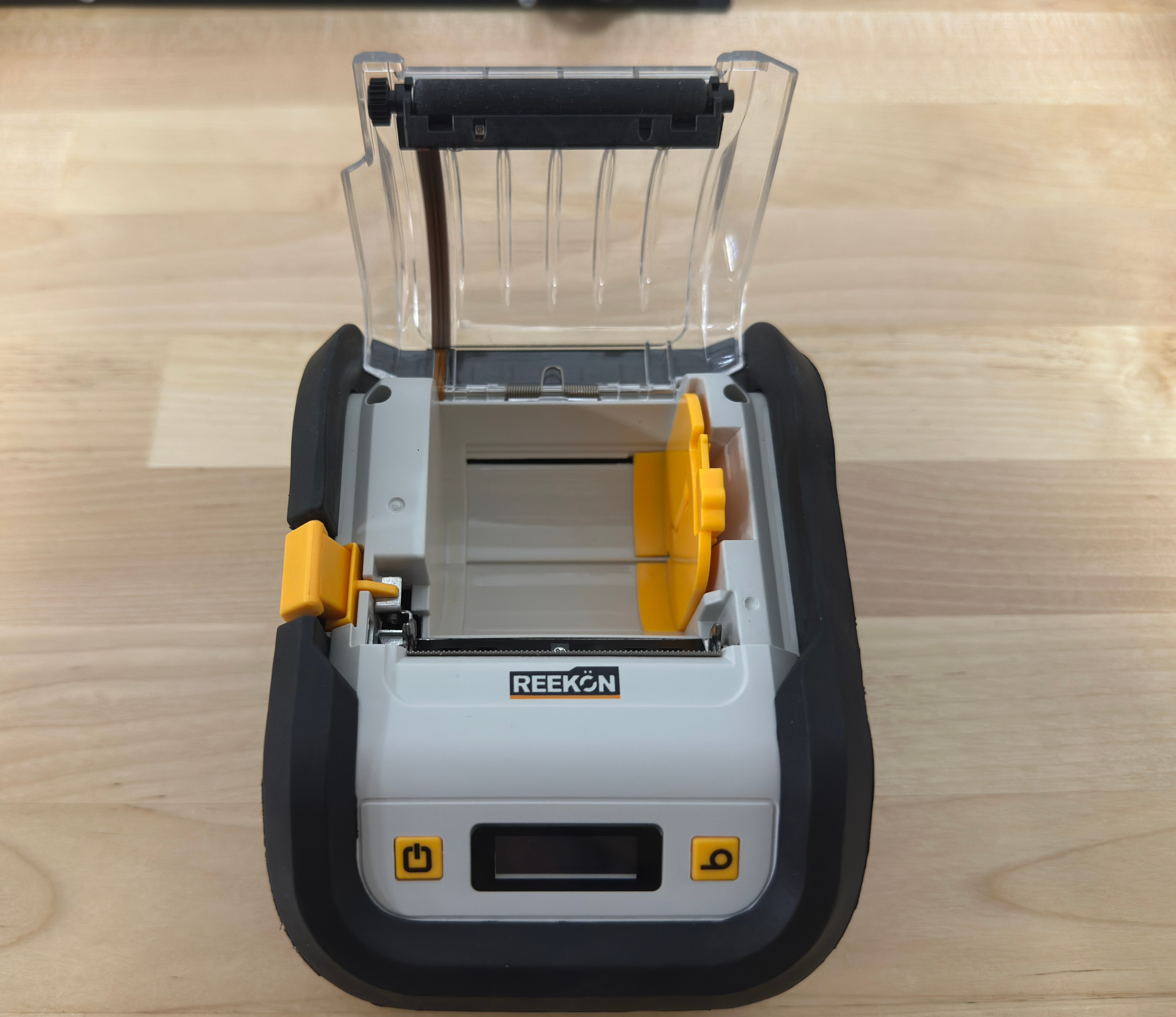

The P1L features a yellow locking slide located inside the label compartment. When this mechanism is engaged, it ensures that the labels fit securely inside the compartment and centered for printing. This can be adjusted to match the width of the labels being dispensed.

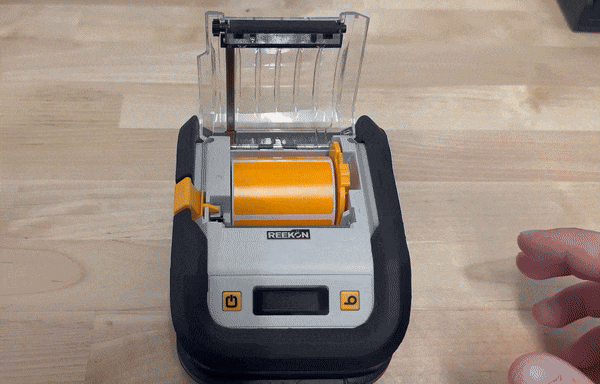

Sliding Lock .jpeg

    1. To Engage: Push the lever up to secure the labels and lock location
    2. To Disengage: Flip the lever down to release the lock
