[T1M] Finding the Center of a Given Distance

The T1M Utility can quickly locate the center distance of the extended tape blade by automatically splitting the measurement in half.  This feature can be used in combination with other measurement functions (internal measurements, relative measurements, etc.).

To Enter Centering Mode:

1. Select the Quick Action Menu Button
2. Scroll to CEN.
3. Press the Quick Action Button again to confirm the selection

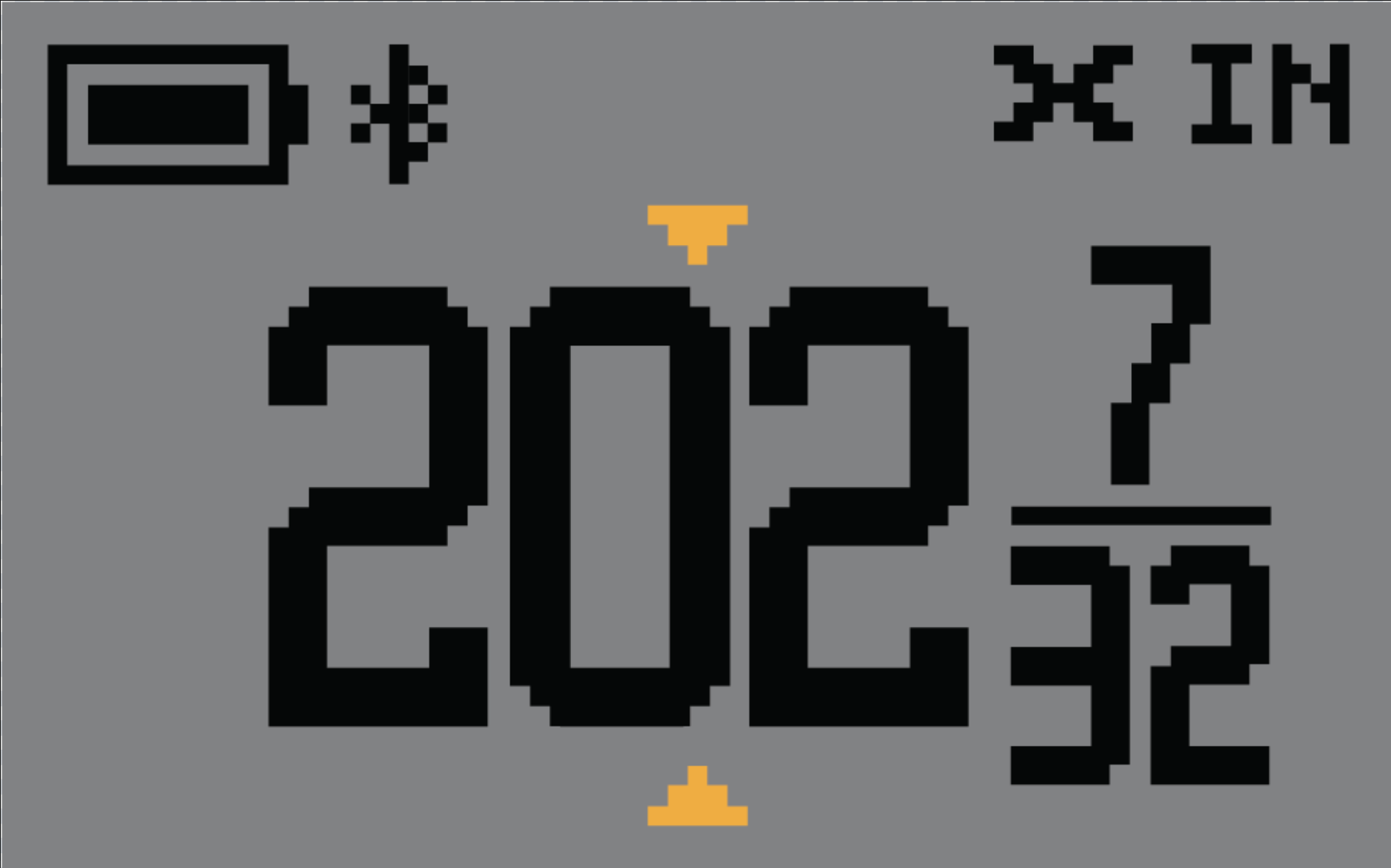

4. The screen now displays both the center finding arrows as well as the center measurement that the T1M is measuring
   •

To exit SHOW CENTER mode, repeat the procedure. The screen should no longer display the center-finding arrows once center mode is disabled.
