[T1M] Blade Setup (Calibration)

The Blade Setup process ensures the markings on the T1M Utility's tape measure blade are accurately aligned with the digital display. This procedure is factory-calibrated but may need to be performed if:

• You replace the tape measure blade.
• A firmware update prompts Blade Setup.
• A Customer Support agent instructs you to do so.

The process is guided on-screen and only takes a few minutes. If you encounter any issues, you can also review our troubleshooting guide here. (add link)

Entering Blade Setup:

• Automatic Mode: Blade Setup will automatically launch before the T1M Utility can be used, if required.
• Manual Mode: Navigate to the main menu, select "Blade Setup", and follow the prompts.

Blade Calibration Steps:

Note: For the following steps, ensure the front reference surface is centered in between the thickness of the line marking when extending and retracting the tape blade

1. Press the capture button to begin the setup process.
2. Select your preferred unit of measurement (English or Metric).
3. For split blades, either can be selected based on preference.
4. Extend the blade to 10 inches (25 cm) - Press the save button.
5. Retract the blade to 0 inches (0 cm) - Press the save button.
6. Extend the blade to 1 inch (2.5 cm) - Press the save button.
7. Extend the blade to 2 inches (5 cm) - Press the save button.
8. Extend the blade to 3 inches (7.5 cm)- Press the save button.
9. Extend the blade to 4 inches (10 cm) - Press the save button.
10. Extend the blade to 276 inches (610 cm) - Press the save button.

(For the 16-foot T1M Utility, move the blade to 180 inches (457 cm) instead).

• Once all measurements are captured, the device will display a “Blade Setup Complete” message.

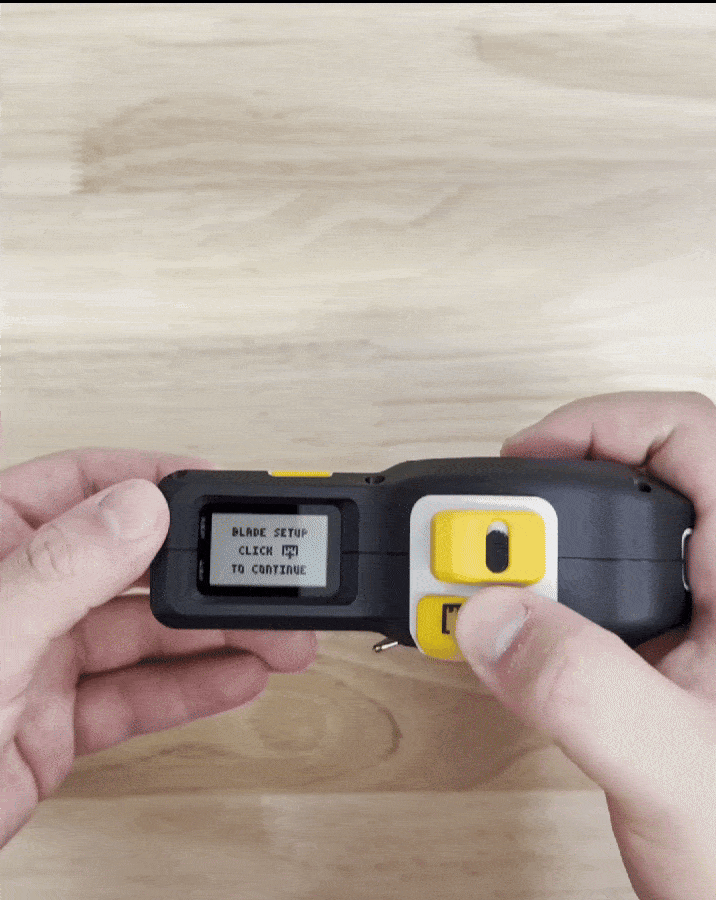

Blade Setup Demonstration:
