[T1M] Updating Firmware

From time to time, REEKON Tools releases firmware updates for the T1M Utility that add additional features, stability, and improvements to the tool. The T1M can be upgraded from any mobile device with the ROCK Jobsite App installed and connected to the T1M over Bluetooth.

You can view the latest versions here.

1. Download and install the ROCK Jobsite App (if not already installed) and log in to your account (or create a new one if you have not used it before)

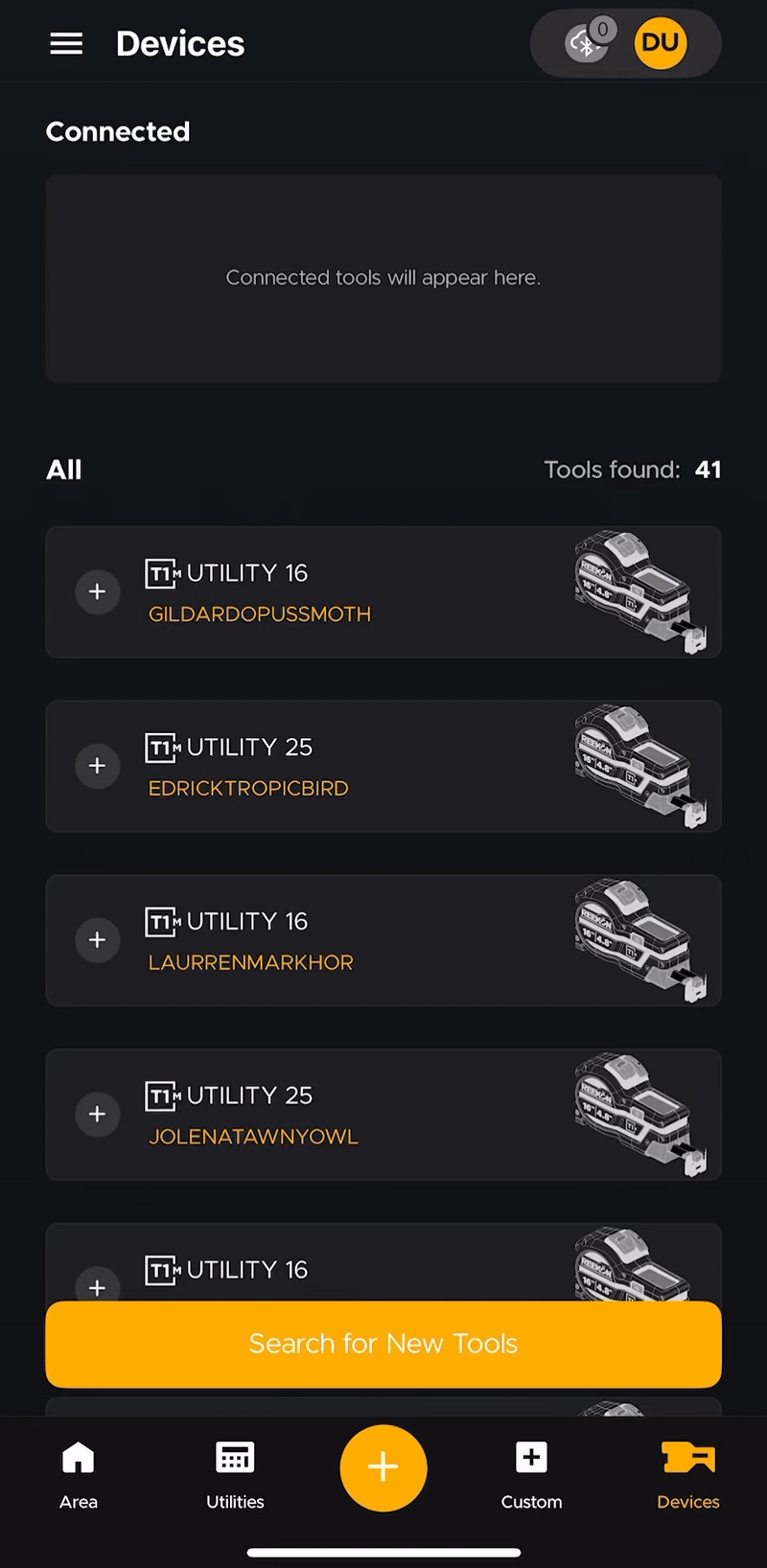

2. On the bottom menu, navigate to the "Devices" Menu
   • Ensure the ROCK App has Bluetooth permissions granted on your phone
3. Connect to the T1M Utility to be upgraded
   • T1M should be powered on and near the phone
   • Serial name will match the serial name of T1M located on the bottom product label

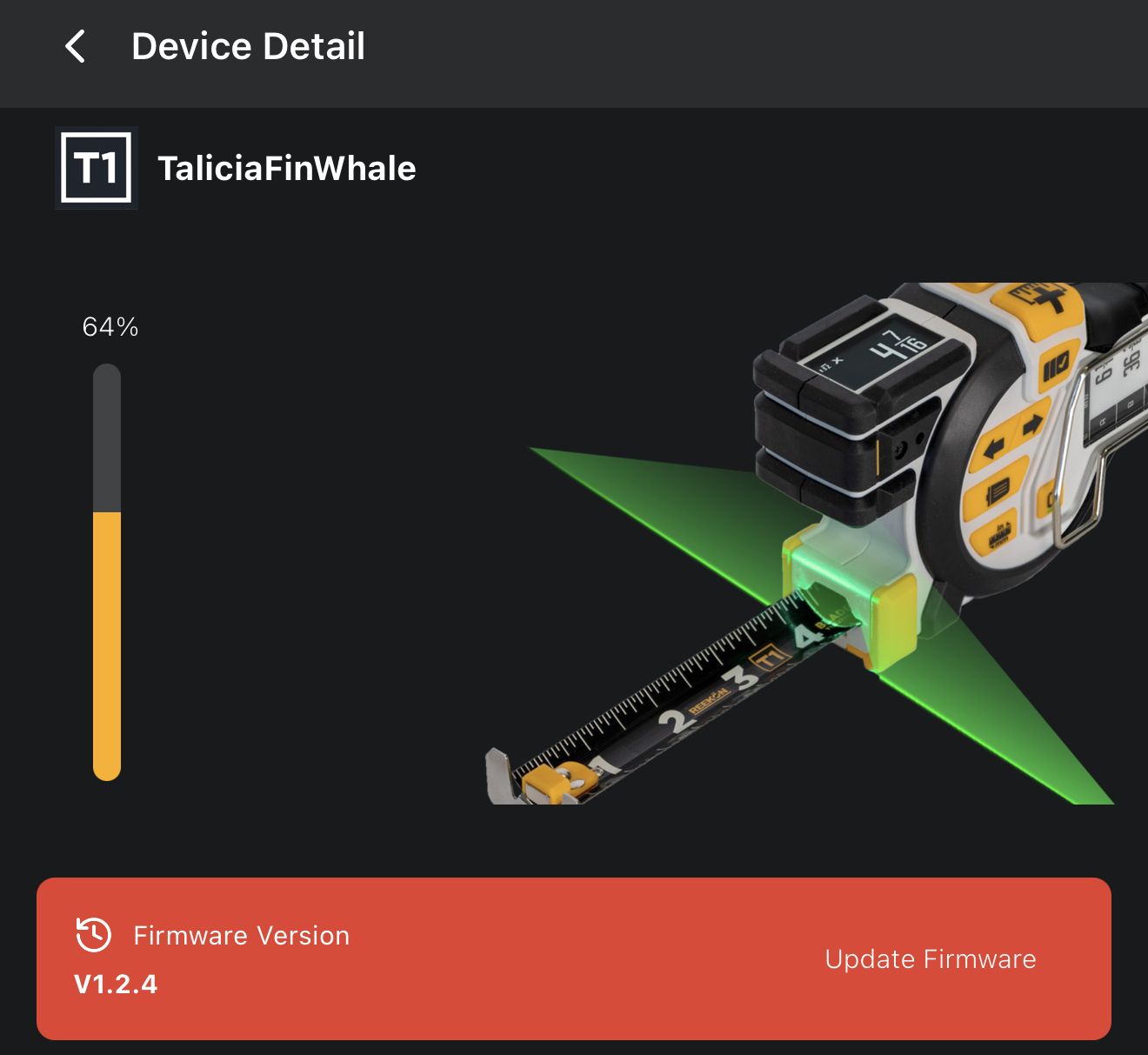

4. Click anywhere on the connected T1M banner
   • This will bring up the T1M detail page

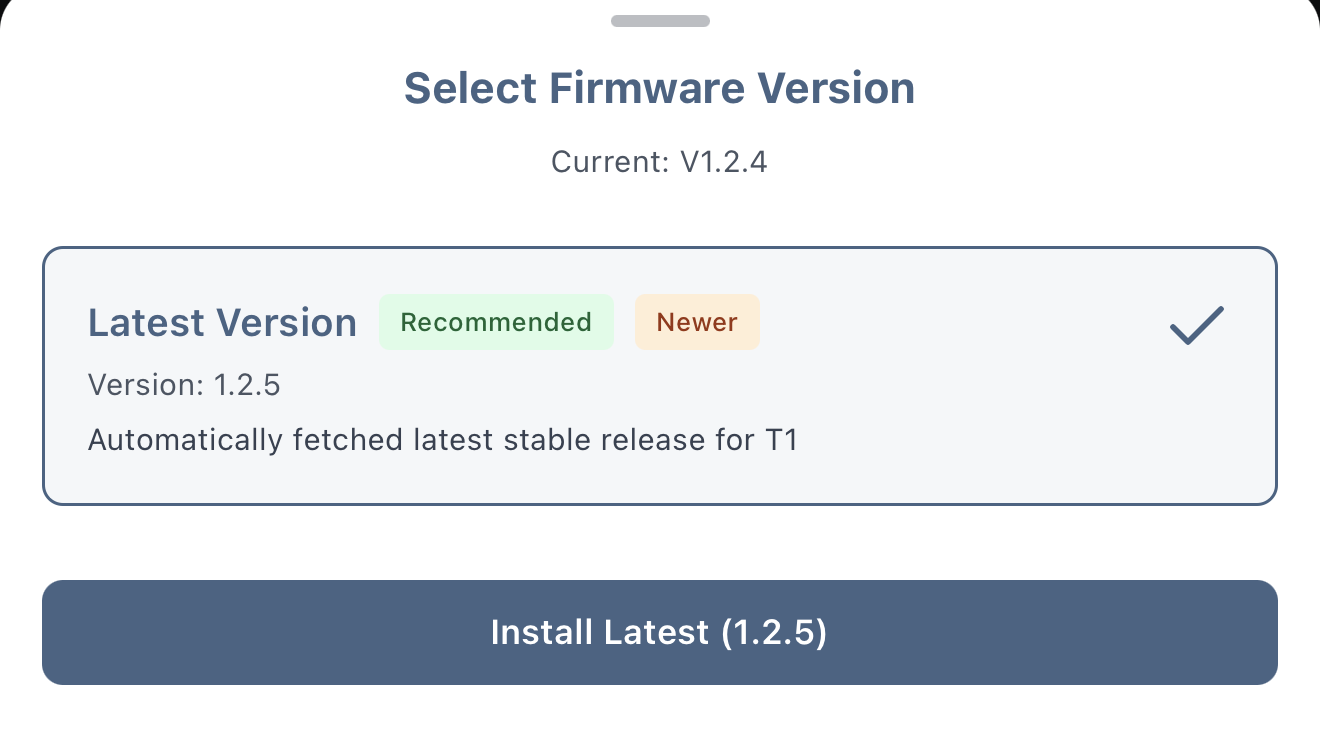

5. Click the banner for firmware upgrade
   • If your T1M needs an update, you will receive a pop-up message with a button to update your device once it is connected.
   • If unavailable, the newest firmware that is compatible with your tool is installed.
6. Review release notes and start
   • Do not touch the phone or T1M during this process
   • The process generally takes 5–10 minutes to complete
   •

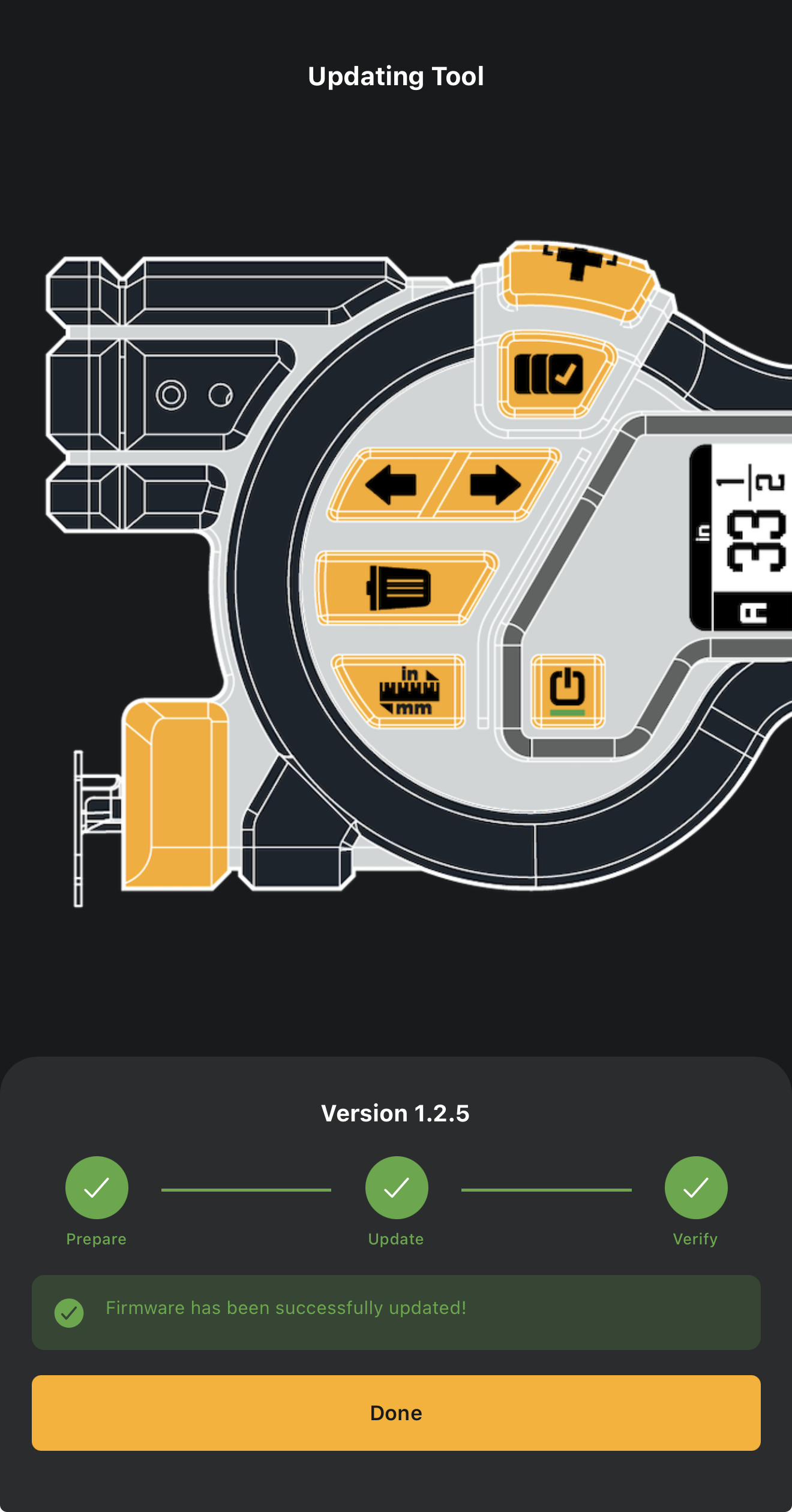

7. Complete Firmware Upgrade
   • Don't touch the T1M until the update has fully completed and the Blade Setup Screen appears
   • On occasion, Blade Setup may be required to complete
