[BOLDR] Measurement Detail Page

The Measurement Detail page in BOLDR Pro shows everything about a single measurement in one place. Use it to review the value, source, notes, and any end treatments before sending a piece to be cut or marked complete.

Opening the Measurement Detail Page (Mobile)

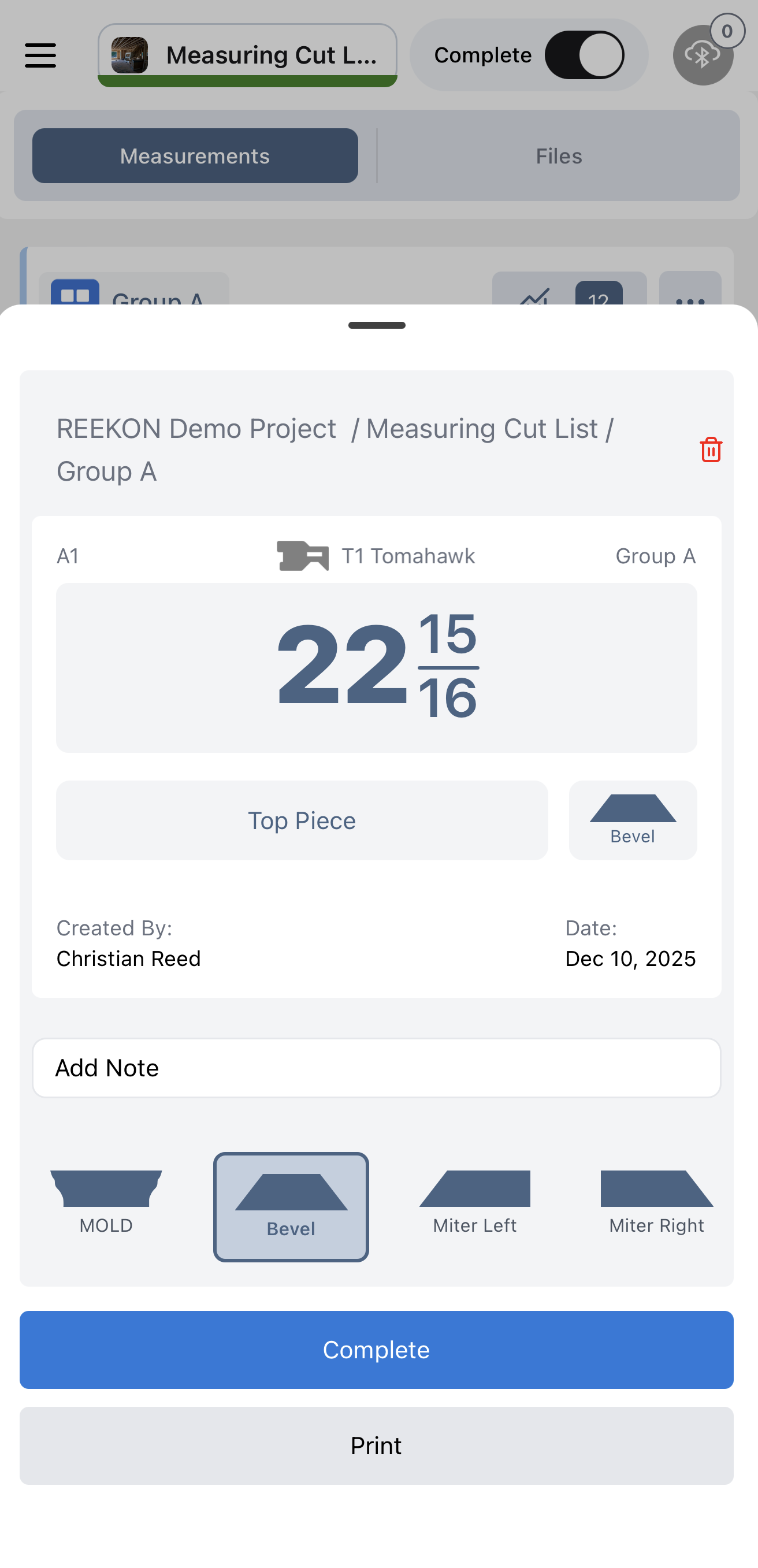

In the mobile app, tap any measurement tile from the Board view to open its detail page. The header shows the Project, Job, and Group so you always know where the measurement belongs.

• Project / Job / Group header: Shows the project name, job name, and group so you know exactly where this measurement belongs.
• Measurement card: Displays the current measurement value and units (for example, inches or millimeters) in large type for quick verification.
• Position tag (such as A1): Indicates the tile’s row and column in the grid so you can match it back to the Board view.
• Source tool: Shows which device captured the value (for example, T1 Tomahawk or other connected tool) so you know where the reading came from.
• Label / Name field: Lets you give the measurement a descriptive name such as “Top Piece” or “Kitchen Window Left.”
• Created by / timestamp: Shows who created the measurement and when it was recorded for traceability.
• Notes field: Stores extra context, such as room location, install instructions, or special handling requirements.
• End treatment options: Buttons for treatments like MOLD, Bevel, Miter Left, and Miter Right that tag how the ends of the piece should be cut.
• Complete toggle or button: Marks the measurement as finished once the cut or action has been performed.
• Print button: Sends the measurement to a connected P1L Tagger printer to generate a label with the value, name, and treatment.

Opening the Measurement Detail Panel (Desktop)

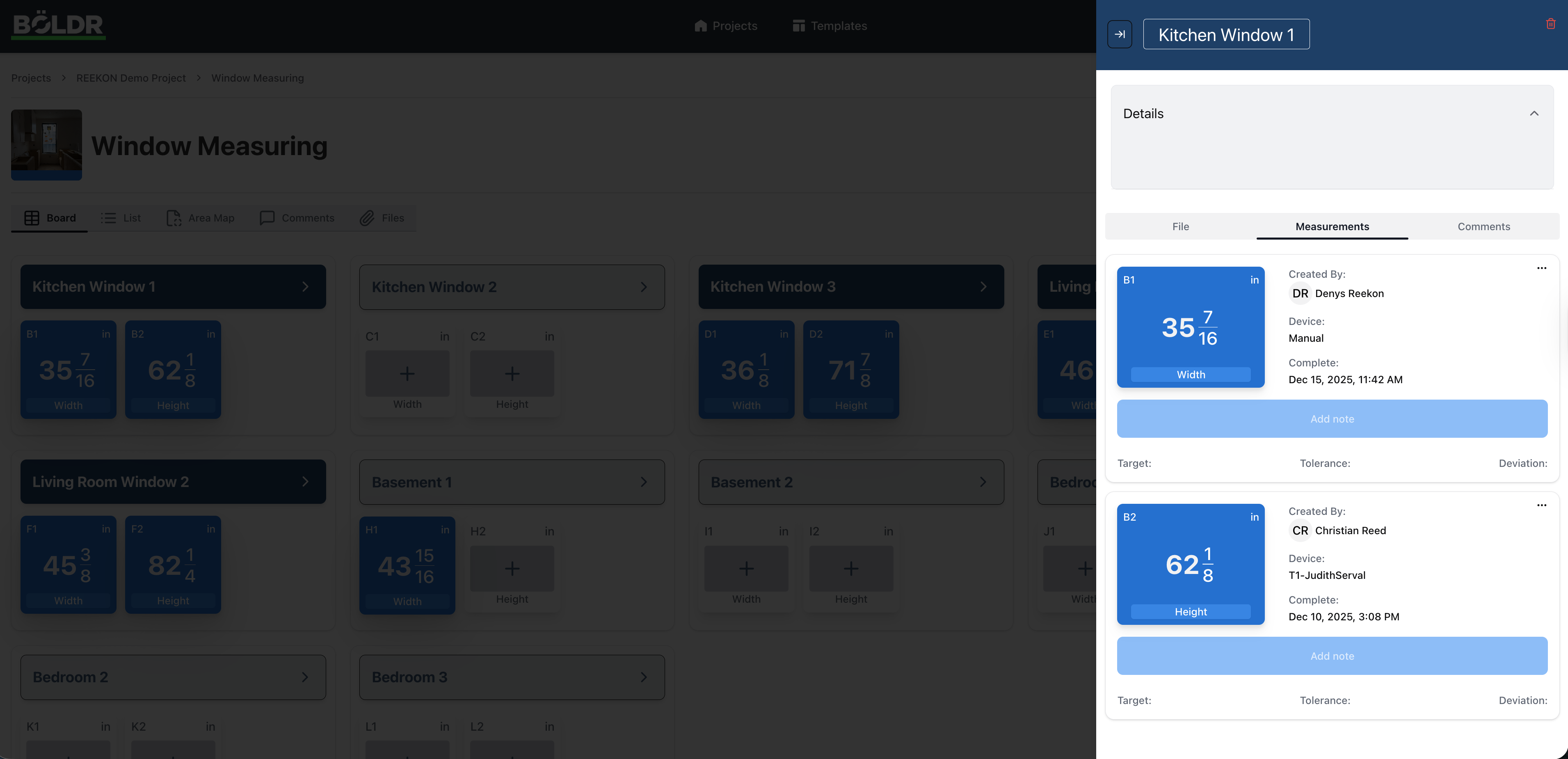

On a desktop, click a measurement group name header from Board or List view to open the Measurement Detail panel on the right side of the screen. The panel keeps the Job visible in the background while you review or edit the selected measurement.

• Panel header: Shows the project, job, and group, plus navigation controls to step through measurements in the selected group.
• Measurement value and units: Displays the numeric value and unit in a prominent card so you can quickly check accuracy.
• Tile position (for example, A1): Matches the detail view to the tile’s location in the Board or List view.
• Source device: Indicates which REEKON or connected tool provided the measurement for QA and troubleshooting.
• Label / Name input: Lets you rename the measurement card for clearer labels on-screen and on printed tags.
• User and timestamp: Shows who last modified the measurement and when, helping track changes across the team.
• Notes area: A text field where you can add or edit job-specific notes, such as “Check rough opening before trim” or “Hold for site review.”
• End treatments selector: Buttons or dropdowns for treatments (MOLD, Bevel, Miter Left, Miter Right, and others) that are saved with the measurement and surfaced on tiles and labels.
• Complete control: A button or toggle to mark the measurement as complete, updating its status everywhere it appears.
• Print control: Sends the selected measurement to the P1L Tagger or other supported output so you can print a physical label.
