[BOLDR] Adding Miter, Bevel, Cope or End Treatment to Measurement

In BOLDR Pro, you can attach end treatments such as miters, bevels, copes, or other profiles directly to individual measurements, so cut instructions are clear in the field and shop.

Adding an End Treatment

Use the measurement detail view to apply end treatments so each piece clearly shows how it should be finished.

1. Open your project and tap or click a measurement tile to open its Measurement Detail view.

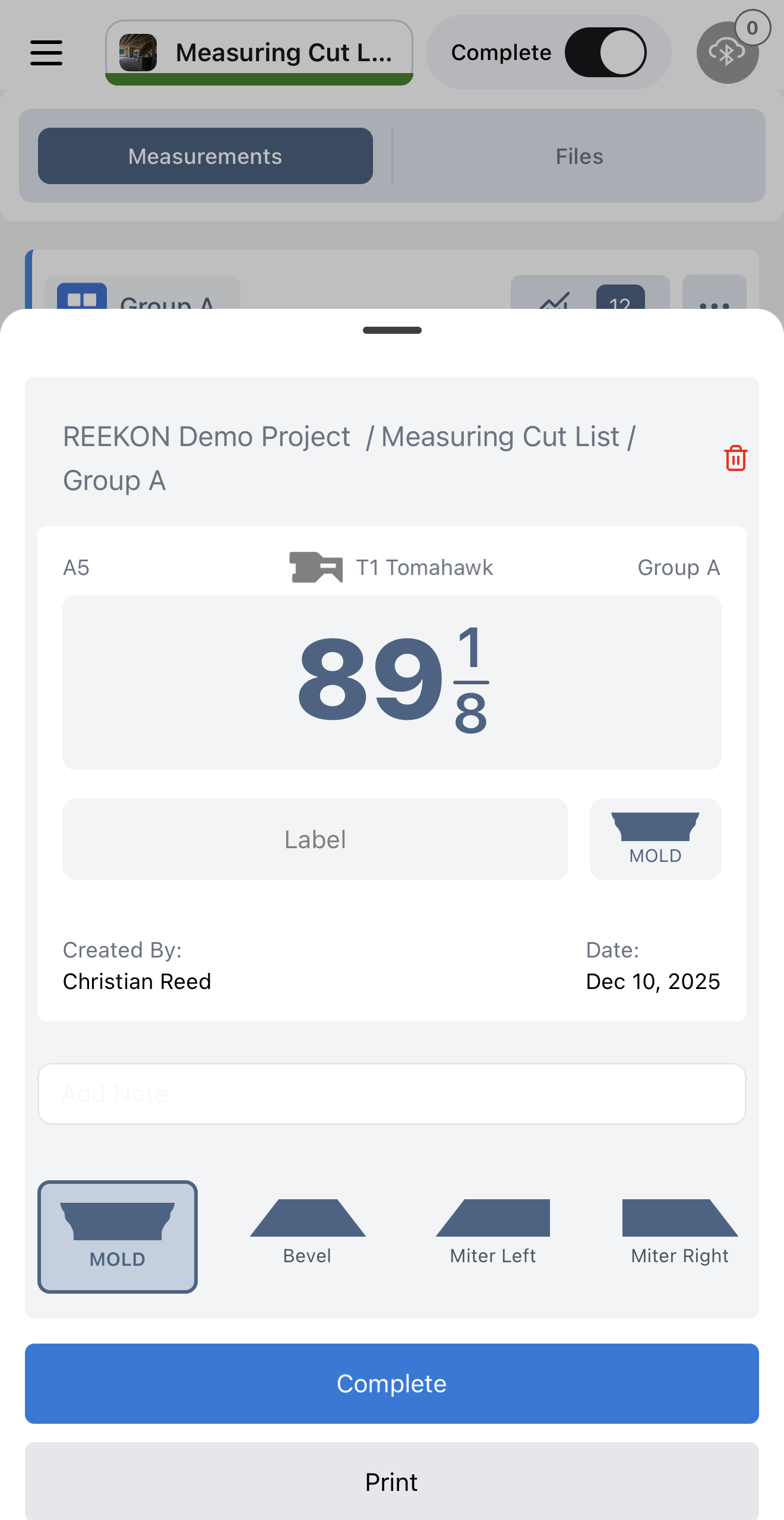

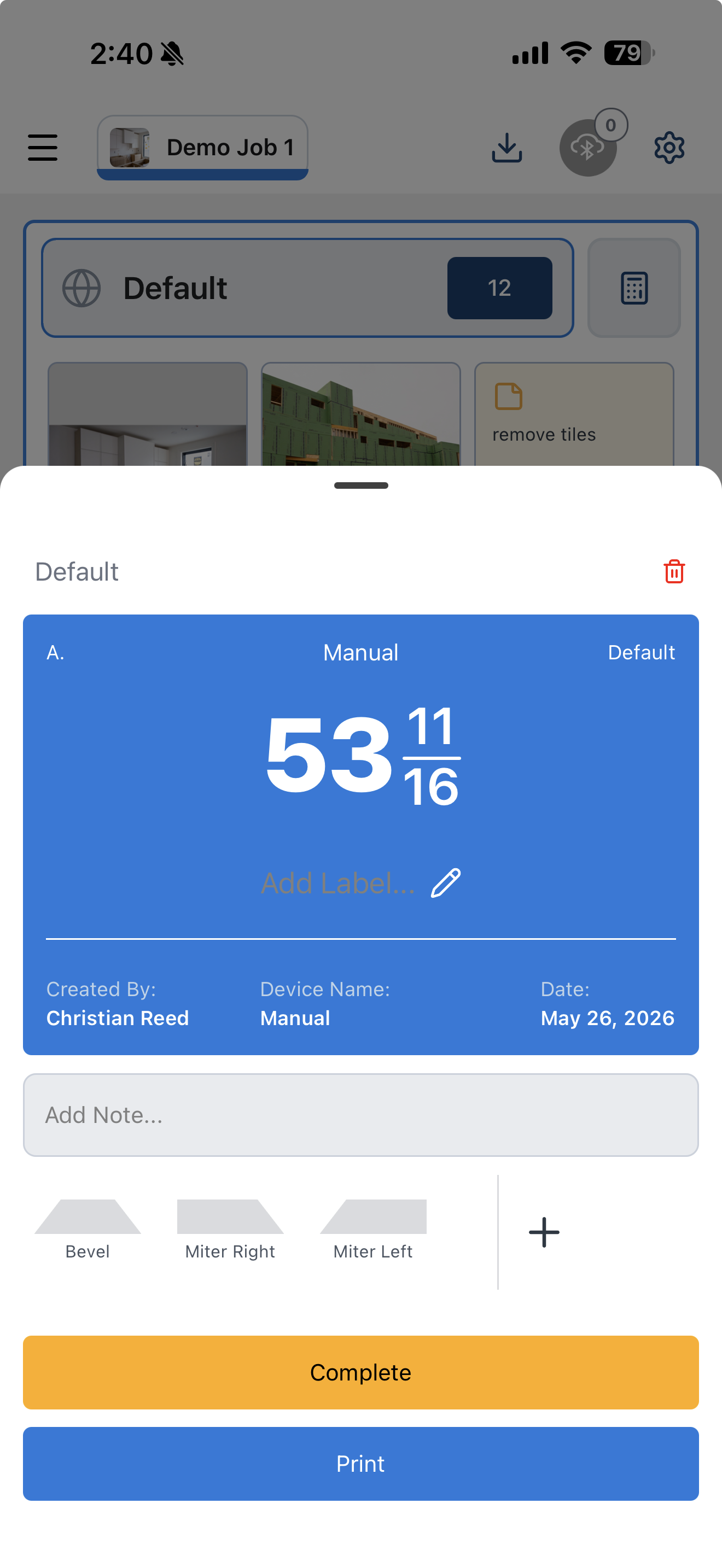

2. Scroll to the bottom of the detail view to find the row of end treatment icons (such as Bevel, Miter Right, and Miter Left).
3. Select the icon that matches the way the ends of the piece should be cut.
4. Confirm that the chosen treatment is highlighted, indicating it is now assigned to that measurement.

The selected end treatment is saved with the measurement and can be printed on labels or shown in cut instructions so shop and field teams see how to finish the piece.

The same treatment text also appears on the measurement tile behind the measurement name, providing a quick visual indicator in the grid.

Creating a Custom End Treatment

If the default options do not match your piece, you can create a custom end treatment and label for it.

1. Open a measurement tile to the Measurement Detail view.

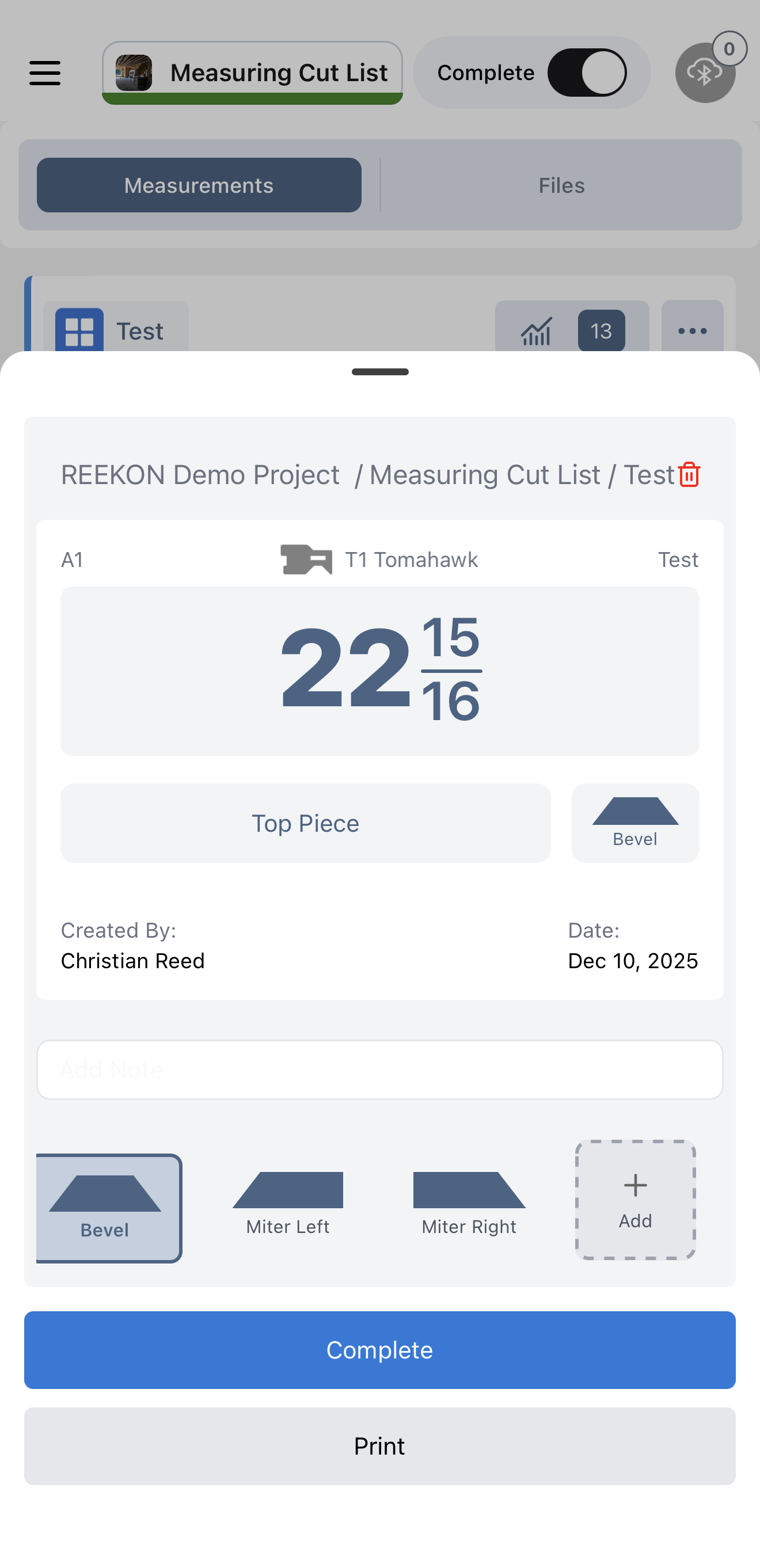

2. Scroll to the row of end treatment icons and swipe or scroll horizontally to the right.

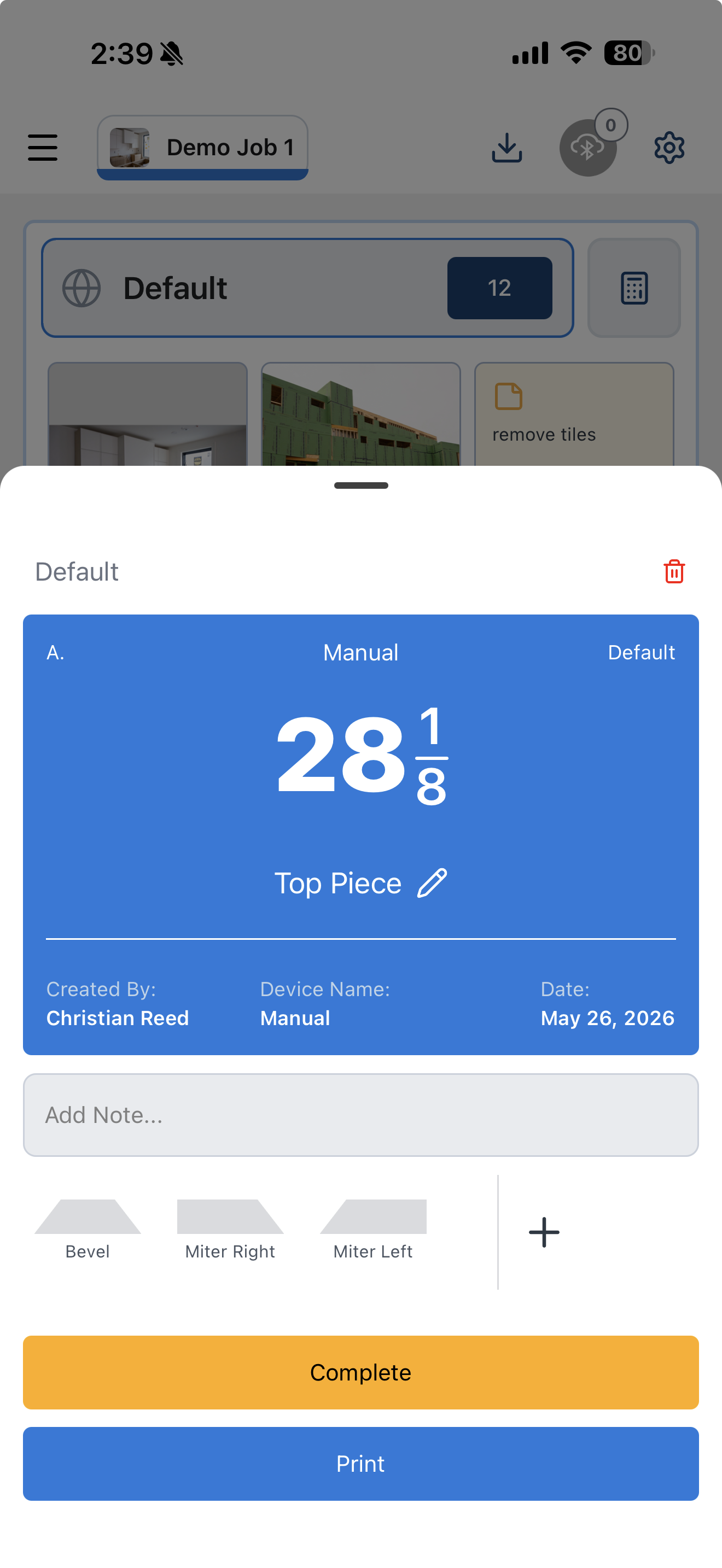

3. Tap the + icon to create a new custom end treatment.

4.

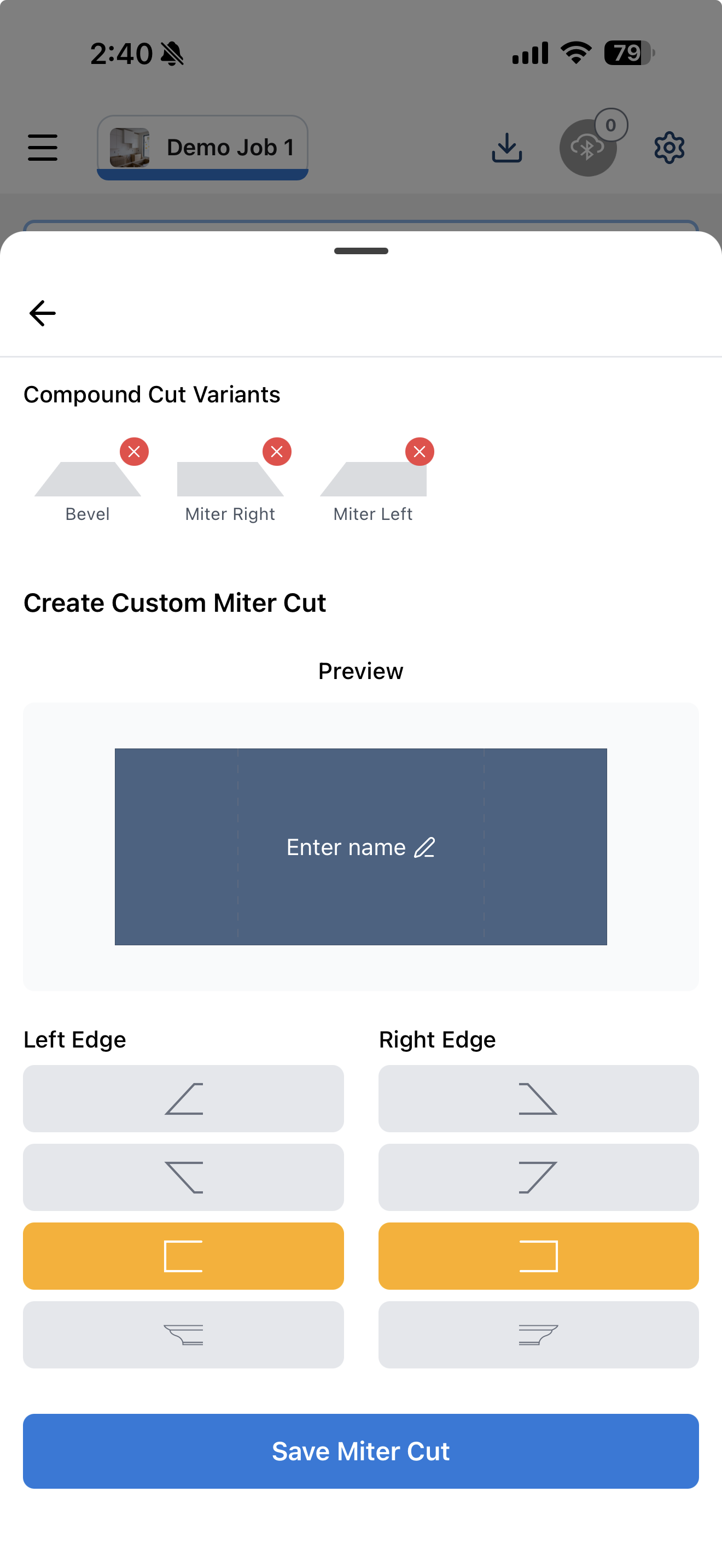

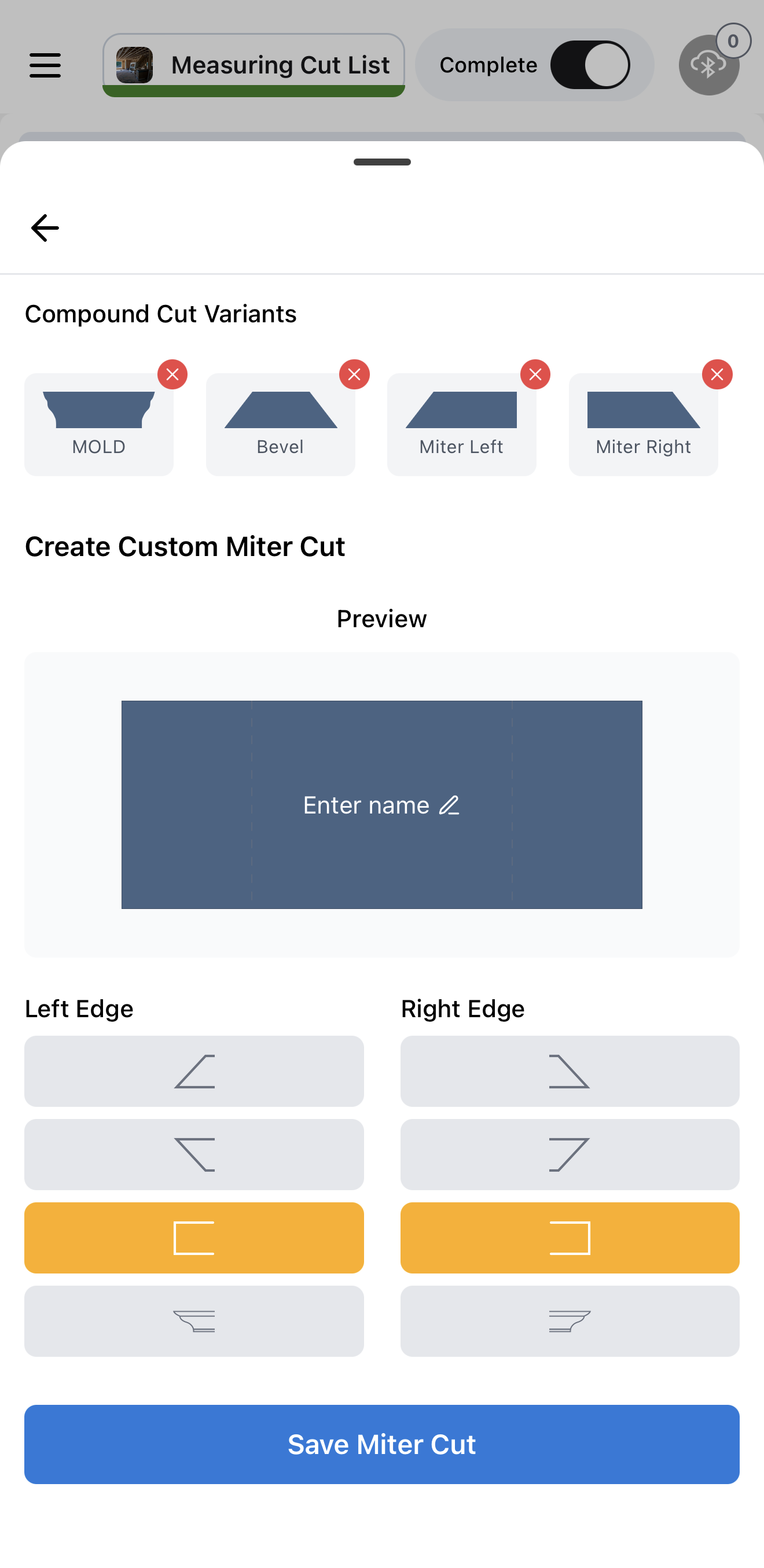

5. Use the left and right edge options to define the cut shape for each side.

6.

7. Tap the name field in the preview area and enter a label for your custom treatment.
8. Tap Save Miter Cut (or the save option shown) to add it to your list of available treatments.

Your custom end treatment now appears alongside the standard options and can be applied to any measurement in the job.
