[T1R] Quick Menu Options

Pressing Menu from the Home Screen opens the main menu, where you reach every setting and function on the tool. Navigation works the same throughout: the arrows move the cursor, Confirm selects, and Capture returns you to the Home Screen from anywhere.

What Is in the Menu

The top of the menu holds the settings you change most often while working — reference surfaces and modifiers that affect how the current measurement is taken and displayed. Below those sit Add Group, then the Level and Functions submenus, then Units and Configuration.

Items marked with an arrow open a submenu. Everything else toggles or applies directly when you confirm it

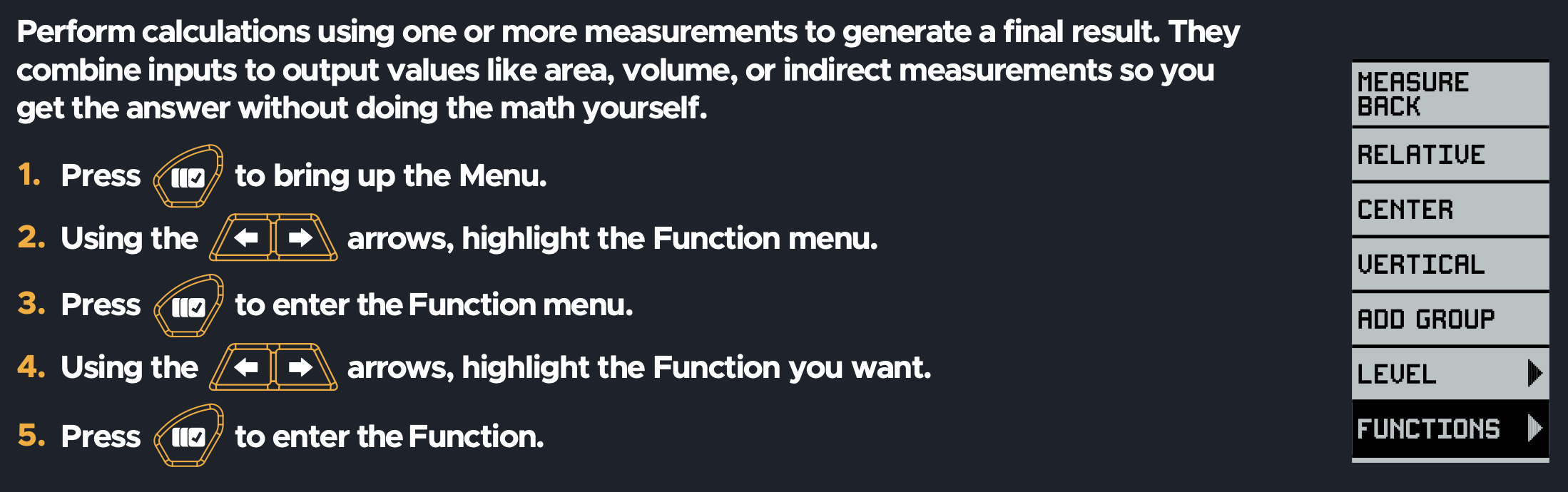

Navigating the Menu

1. Press Menu button on the side of the T1R (3 overlapping squares)
2. Use the arrows to highlight the item you want.
3. Press the Menu Button to select it or enter its submenu.
4. Press Capture at any point to return to the Home Screen.

Because Capture always exits to the Home Screen, you can back out of anywhere without retracing your steps.
