[T1R] Level Functions

The T1R has built-in sensors that report orientation and angle in real time. The level functions change how that alignment data is displayed and what it is referenced against.

A single axis level stays visible on the Home Screen at all times, giving you a live level reading while measuring without switching modes or tools.

Accessing Level Functions

1. Press Menu to bring up the menu.
2. Use the arrows to highlight the Level menu.
3. Press Confirm to enter it.
4. Use the arrows to highlight the level function you want.
5. Press Confirm to enter the level function.

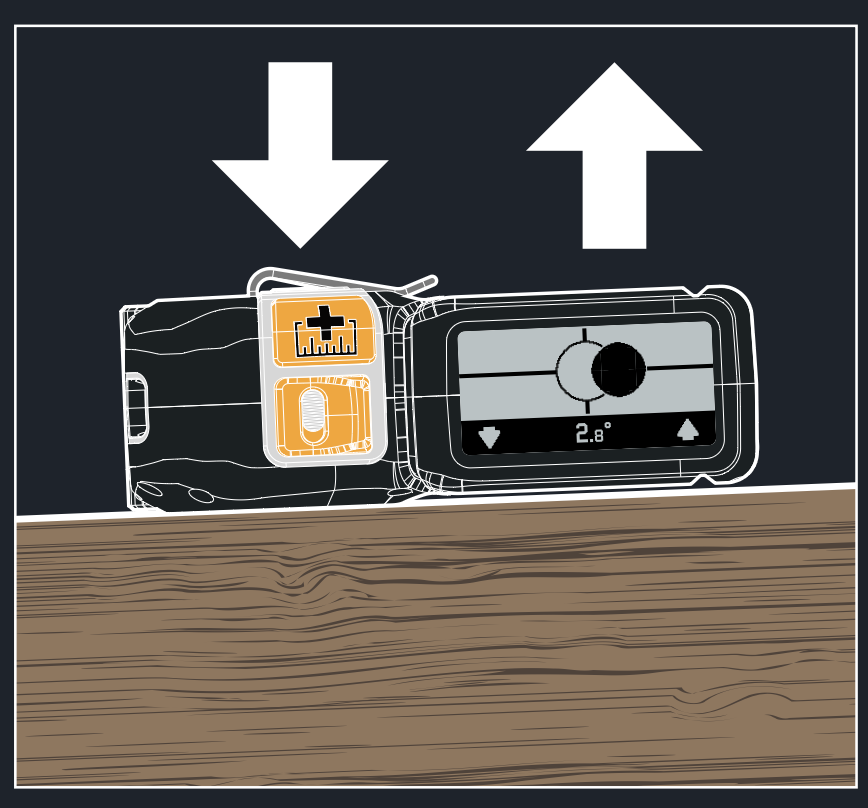

Single Axis

Measures angle along one plane using a single reading, displaying tilt relative to level or plumb in real time. A simple, focused view of alignment in one direction.

Dual Axis

Measures angle in two planes simultaneously and displays both values at once, showing full orientation without switching views.

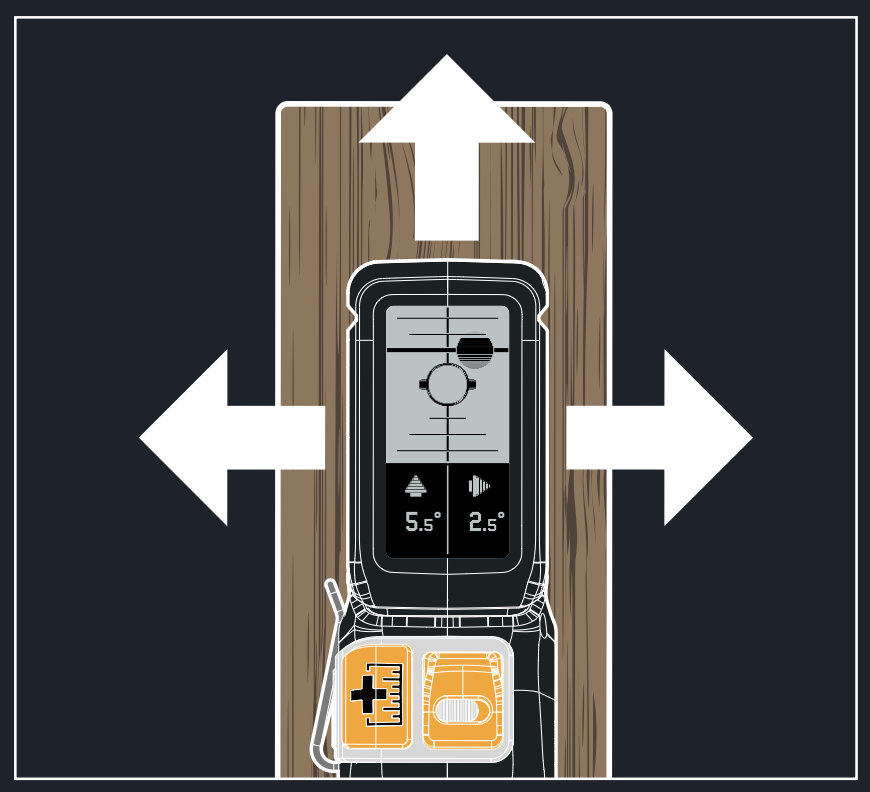

Post Level

Measures dual-axis alignment in a fixed vertical orientation, showing deviation from plumb for posts and uprights. Keeps readings consistent when working vertically.

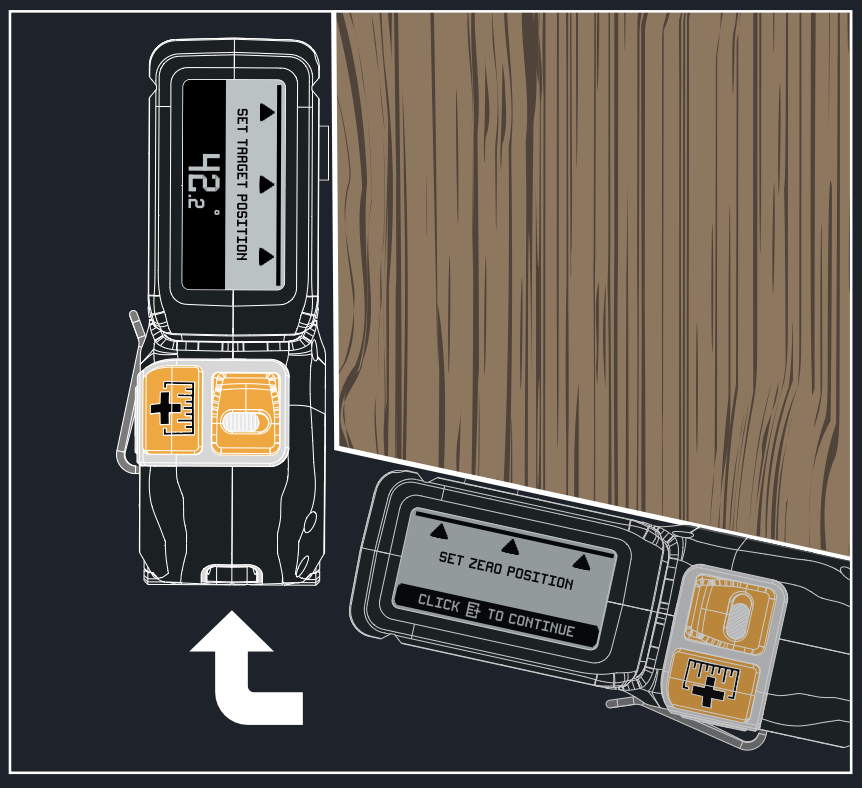

Angle Finder

Sets a starting position to establish a reference angle. Move the tool and it displays the angle relative to that starting point, giving a continuous reading based on change from the initial position.

Saving Level Readings

Level readings save to the Saved Measurement List like any other measurement, tagged with their own icons for Dual Level, Post Level, and Angle Finder.
