[ROCK] Measurement Groups

Measurement Groups are a way to organize measurements together in an area. By default, all measurements are under the #Default Group but more can be created when desired. To create a new group or modify an existing group.

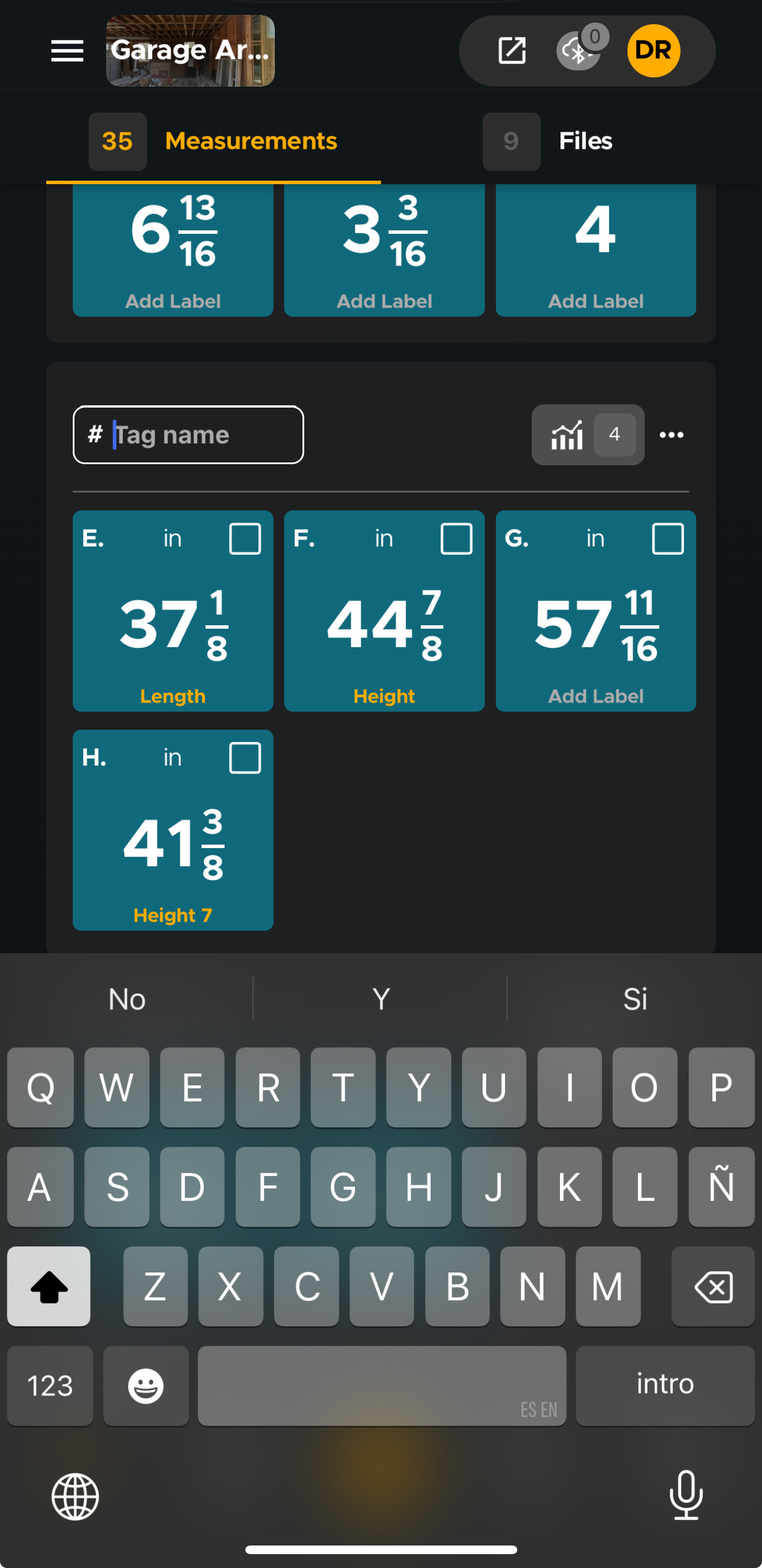

Rename Existing Group

1. On the Area screen, hold down the group for 2 seconds.
2. Type in text for the new label.
   •
3. Select anywhere outside of the screen to save.

From Existing Measurement (Single)

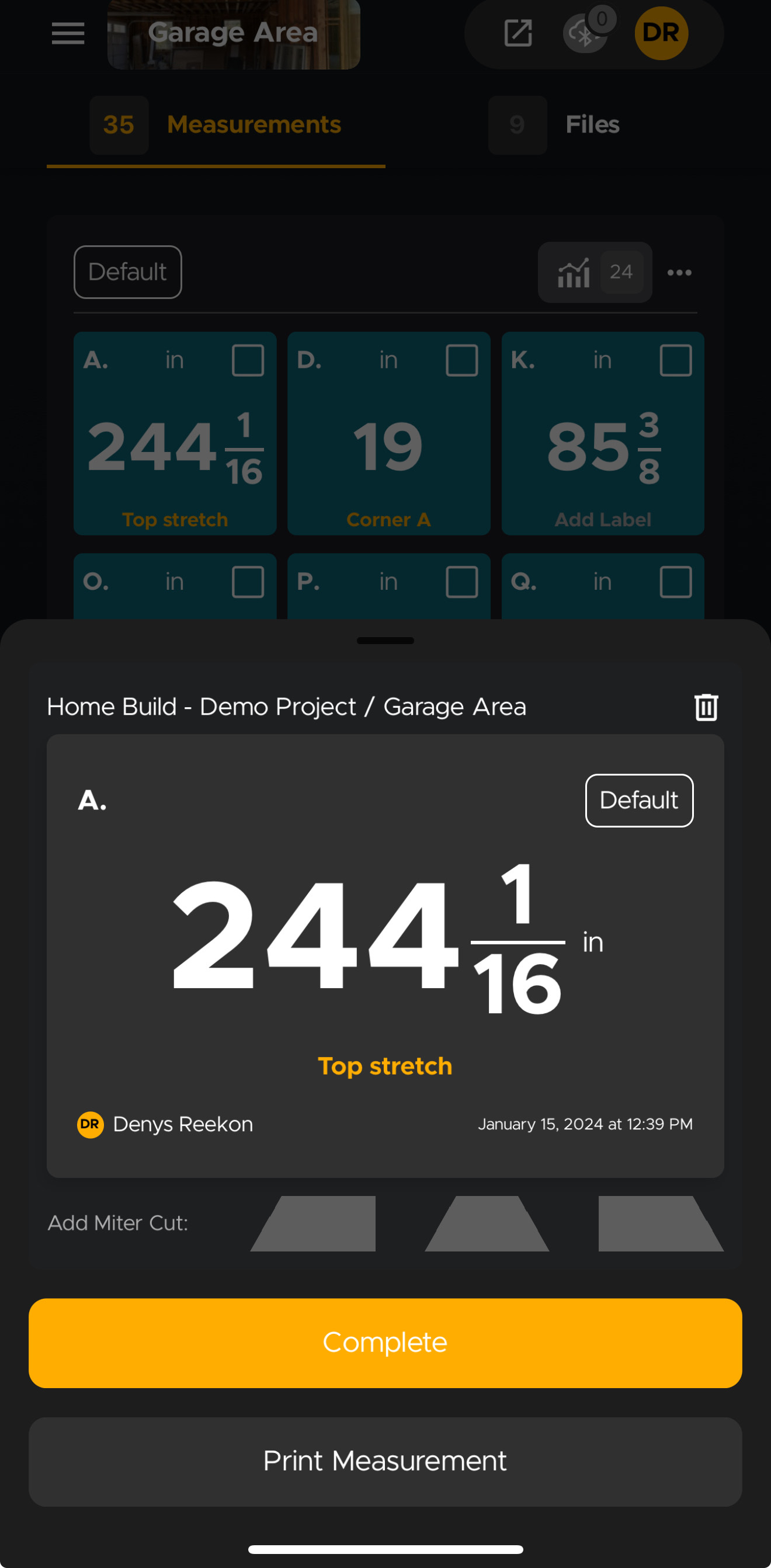

1. On the Area Screen, select the measurement to enter the Measurement detail page.
2. In the top left of the screen, select the current group name.
   •
3. Enter a name for the new group or select from an existing group underneath the input area.
   •
4. Once entered, select Done to confirm the group name.
5. Select "Confirm" at the bottom of the screen to move measurements to the new group.

From Existing Measurements (Bulk)

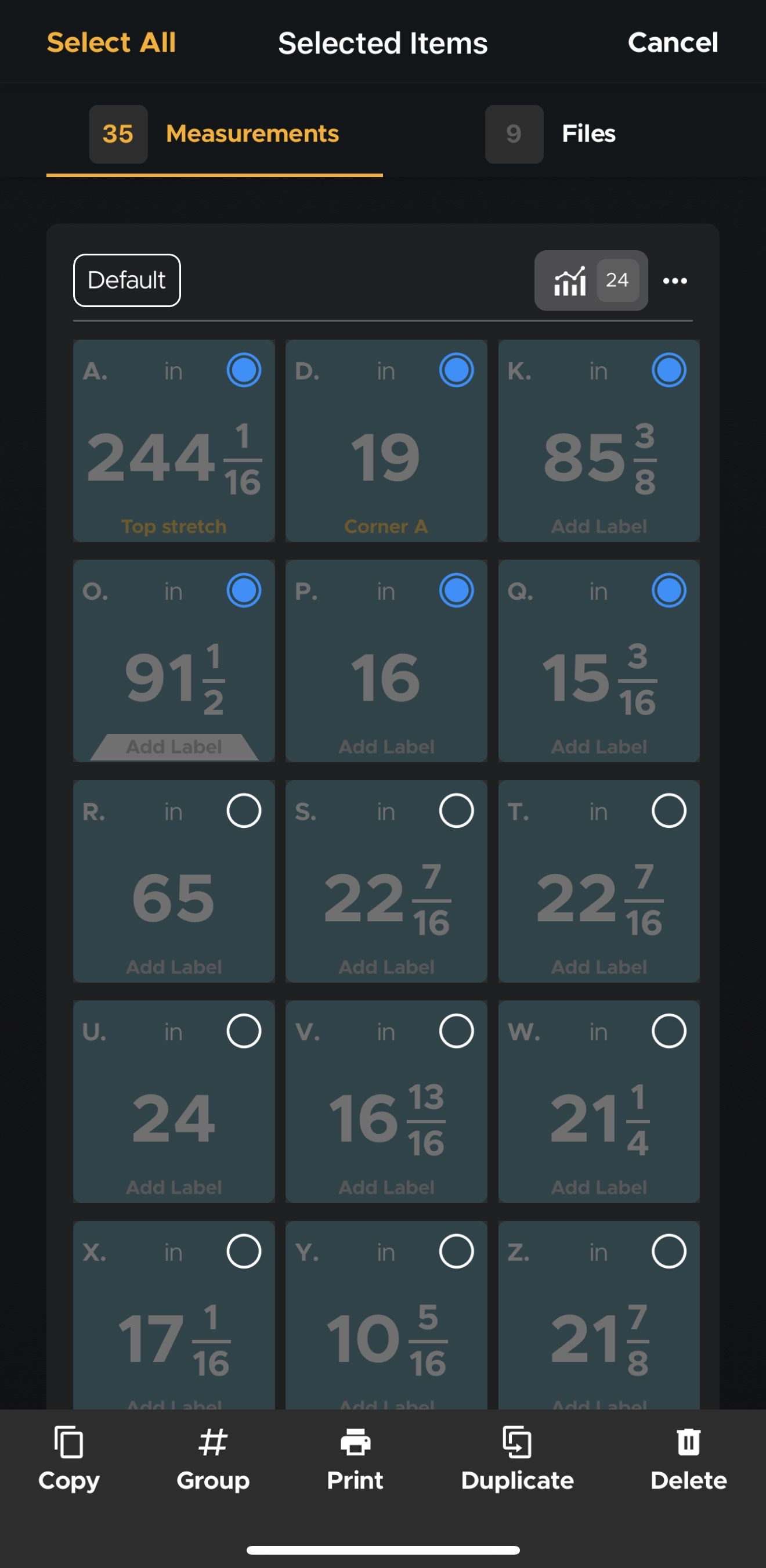

1. On the Area Screen, hold the measurement you would like to change the group on. After 2 seconds, a blue circle appears in the top of the Measurement Square.
   •
   • Select any additional measurements to be moved to the new group as well while in selection mode
2. Once Measurement(s) have been selected, select the group button on the bottom menu

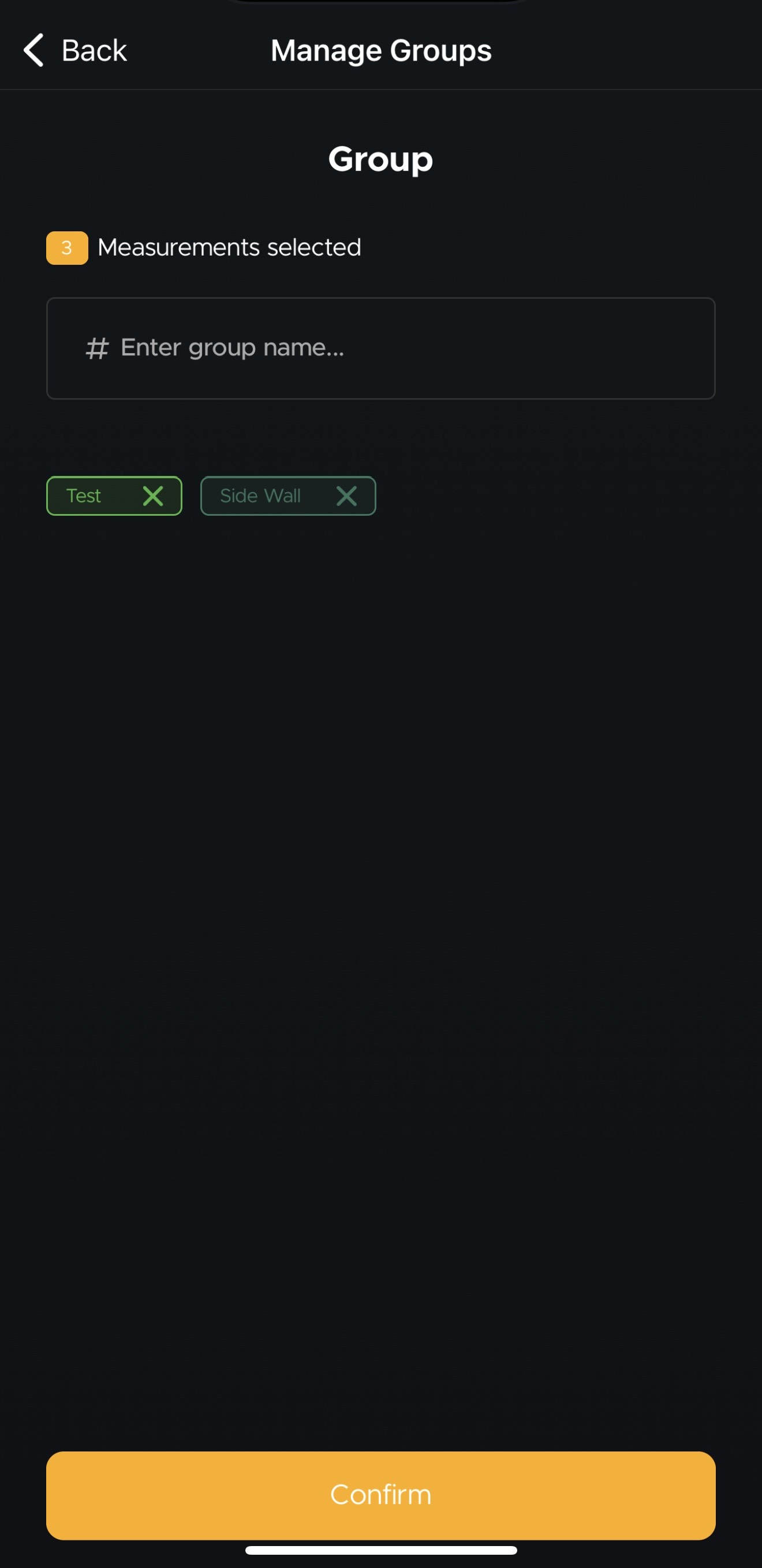

3. Enter a name for the new group or select from an existing group underneath the input area (be sure to press enter once complete on the keyboard).
   •
4. Once entered, select Done to confirm the group name.
5. Select "Confirm" at the bottom of the screen to move measurements to the new group.

From New Measurements

1. Create a Manual Measurement or Angle
   •
2. In the top left of the screen, click on the "Default" group
3. Enter a name for the new group or select from an existing group underneath the input area.
   •
4. Once entered, select Done to confirm the group name
5. Select "Confirm" at bottom of screen to move measurements to a new group
6. Save Measurements to complete
