[T1M] Auto Lock Function

By default, the tape blade on the T1M Utility will remain locked and not retract unless the Auto Lock button is pushed forward (located on the top of the T1M next to the measurement capture button).

• Retract the tape measure by pushing the Yellow Auto Lock button forward.  This allows the blade to be retracted into the tape body.

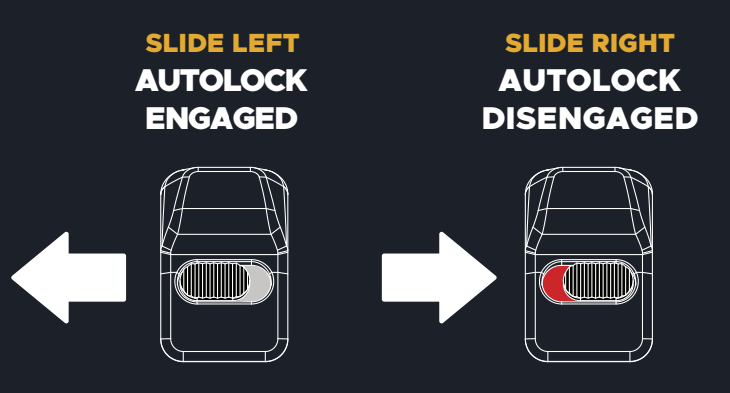

• You can engage/disengage the auto lock by pushing down the autolock button, then sliding the Auto Lock switch left or right. When the auto lock is disabled, a red dot appears
  •

• When the Auto Lock is disabled, the tape blade extends and retracts as would a normal tape measure with minimal resistance, without locking at any position.
  •
